GennLab Standard Alignment (calibration) Cassettes equivalent to A-BEX (ALMEDIO INC.) Calibration Cassettes
1. International Air. NoTracking number. Delivery target from 10 to 25 working days. Up to 2 items per a single package for combined shipping. $29.00
2. International Air. NoTracking number. Delivery target from 10 to 25 working days. Up to 6 items per a single package for combined shipping. $39.00
3. International Courier with Tracking number (this option is NOT available for customers from Russia, Lithuania and Iceland). Delivery target from 5 to 10 working days. Up to 9 items per a single package for combined shipping. $79.00. Please note for courier delivery the shipping address must be written in English. Provide your shipping address written in English.
To add $29.00 Shipping fee click here
Shipping options
On completion of your PayPal shopping cart page, click on the "Continue Shopping" button. You will then be redirected back to your last purchase page. The correct shipping fee can then be determined from the Shipping options listed below.
Please include your contact telephone number in your PayPal shipping address.
To add $39.00 Shipping fee click here
To add $79.00 Shipping fee click here
G e n n L a b
www.gennlab.com
Customer feedback
*Please note all prices are in $US. Your order can not be processed until payment has been made for shipping. Follow the instructions at the bottom of the page.
Purchase price for the Cassette inclusive of cassette box $85. Please note Shipping fee NOT included.
Pioneer equivalent Cassette + cassette box. $85
Shipping fee must be included when you have added the last item to your Cart. See the Shipping options listed below.
Please note, with Economy shipping listed above without Tracking Number, our responsibility ends at the post shop reception. We can E-mail the picture of the parcel taken at the New Zealand Post Shop reception desk and the Post Shop receipt showing the date and time of shipping but no Tracking Number.
Please note, because New Zealand Post does not directly control all parts of the delivery chain, it cannot guarantee that the item will always reach its destination within the delivery target. Delivery to areas outside major cities, or where your item is dutiable or held in Customs, may take longer.
ATTENTION CUSTOMERS FROM RUSSIA, LITHUANIA and ICELAND!
Option 3 International Courier with Tracking number is not available for customers from Russia, Lithuania and Iceland!
230916
Only new TDK, MAXELL or TEAC tape is used when recording.
To specify Cassette type click on the arrow below.
 |

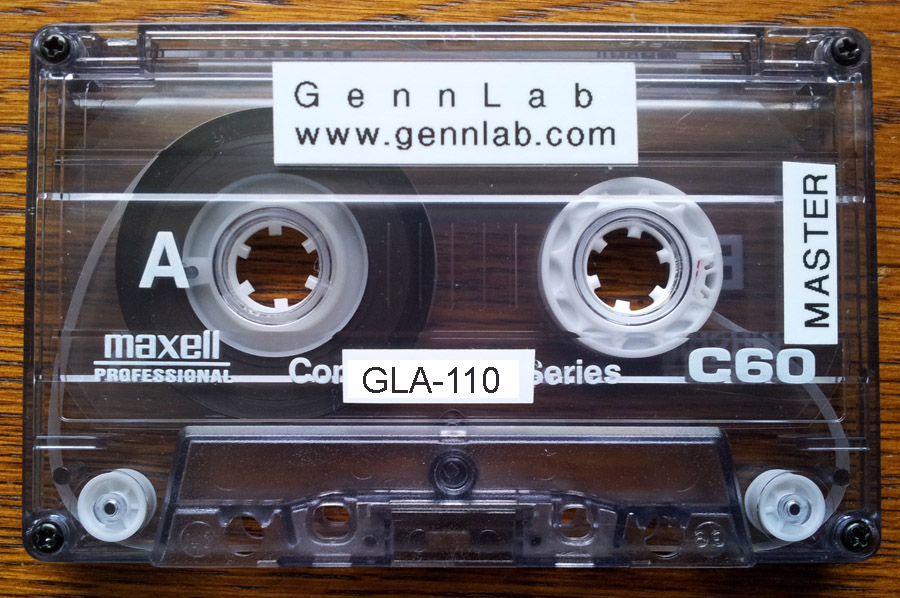

Sample of GLA-110 Standard Alignment Cassette |
|
 |

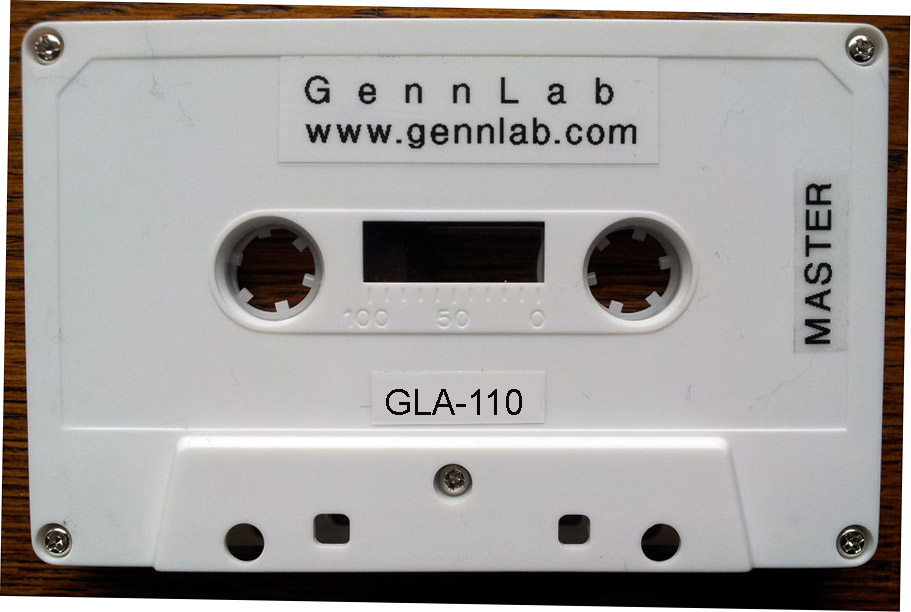

Sample of GLA-110 Standard Alignment Cassette |
|
Click on the picture to enlarge
GLABC-111. Tape speed test, WOW & Flutter. -4 dB at 3 kHz. Alignment.
Equivalent to A-BEX TCC-111 cassettes.
GLABC-110. Tape speed test, WOW & Flutter. -4 dB at 3 kHz. Calibration.
Equivalent to A-BEX TCC-110 cassettes.
GLABC-112. Tape speed test, WOW & Flutter. -10 dB at 3 kHz.
Equivalent to A-BEX TCC-112 cassettes.
GLABC-113. Tape speed test, WOW & Flutter. -4 dB at 3.15 kHz.
Equivalent to A-BEX TCC-113 cassettes.
GLABC-114. Tape speed test, WOW & Flutter. -10 dB at 3.15 kHz.
Equivalent to A-BEX TCC-114 cassettes.
GLABC-119. Tape speed test, WOW & Flutter. -4 dB at 3 kHz.
Equivalent to A-BEX TCC-119 cassettes.
GLABC-120. Level adjustment. 0 dB at 315 Hz.
Equivalent to A-BEX TCC-120 cassettes.
GLABC-121. Level adjustment. -4 dB at 315 Hz.
Equivalent to A-BEX TCC-121 cassettes.
GLABC-130. Dolby Level. 200 nWb/m at 400 Hz.
Equivalent to A-BEX TCC-130 cassettes.
GLABC-140. Level adjustment. 0 dB at 1 kHz.
Equivalent to A-BEX TCC-140 cassettes.
GLABC-141. Level adjustment. -4 dB at 1 kHz.
Equivalent to A-BEX TCC-141 cassettes.
GLABC-142. Level adjustment, Distortion check. -10 dB at 1 kHz. Equivalent to A-BEX TCC-142 cassettes.
GLABC-151. Head Azimuth adjustment. -10 dB at 6.3 kHz.
10min 2-track recording in shell.
Equivalent to A-BEX TCC-151 cassettes.
GLABC-152. Head Azimuth adjustment. -10 dB at 8 kHz.
10min 2-track recording in shell.
Equivalent to A-BEX TCC-152 cassettes.
GLABC-153. Head Azimuth adjustment. -10 dB at 10 kHz.
10min 2-track recording in shell.
Equivalent to A-BEX TCC-153 cassettes.
GLABC-154. Head Azimuth adjustment. -24 dB at 12.5 kHz.
10min 2-track recording in shell.
Equivalent to A-BEX TCC-154 cassettes.
GLABC-155. Head Azimuth adjustment. -24 dB at 14 kHz.
10min 2-track recording in shell.
Equivalent to A-BEX TCC-155 cassettes.
GLABC-160. Multifrequency. 3180 +120 Usec.
0 dB at 315 Hz. Frequency Response 31.5 Hz-10 kHz at -10 dB.
Equivalent to A-BEX TCC-160 cassettes.
GLABC-161. Multifrequency. 3180 +120 Usec.
-4 dB at 315 Hz. Frequency Response 31.5 Hz-14 kHz at -24 dB.
Equivalent to A-BEX TCC-161 cassettes.
GLABC-162. Multifrequency. 3180 +120 Usec.
-4 dB at 315 Hz. Frequency Response 31.5 Hz-18 kHz at -24 dB.
Equivalent to A-BEX TCC-162 cassettes.
ALMEDIO INC. (formerly known as A-BEX LABORATORIES INC.) was found in 1981. "A-BEX LABORATORIES INC." label on cassettes has been changed to "A-BEX ALMEDIO INC. TOKYO, JAPAN TEST TAPE" label. ALMEDIO INC. stopped the production and sales of ALL test cassettes in September 2010.
A-BEX Specifications GennLab measured
for 160, 160B, 160C Series
Speed accuracy (%):
+/- 0.5 +/- 0.01
+/- 0.3 at Reference Level section +/- 0.01
Wow & flutter (W. Rms %): 0.1 0.022
Level deviation (dB):
at 20 Hz - 4 kHz : +/- 0.5, +/- 0.1
+/- 0.3 at Reference frequency; +/- 0.06
at 6.3 kHz-14 kHz: +/- 1.0; +/- 0.3
at 16 kHz, 18 kHz: +/- 1.5 +/- 0.5
Level fluctuation (VU):
at 20 Hz - 4 kHz : +/- 0.5; +/- 0.06
at 6.3 kHz-14 kHz: +/- 1.0; +/- 0.1
at 16 kHz, 18 kHz: +/- 1.5 +/- 0.2
GLABC-262. Multifrequency. 3180 +70 Usec.
-4 dB at 315 Hz. Frequency Response 31.5 Hz-18 kHz at -24 dB.
Equivalent to A-BEX TCC-262 cassettes.
GLABC-173BD. 2-frequency. 3180 +120 Usec.
Azimuth/Frequency Response 10 kHz/1kHz -10dB.
10min Full-track recording out of shell.
Equivalent to A-BEX TCC-173B cassettes for duplicator.
GLABC-173B. 2-frequency. 3180 +120 Usec.
Azimuth/Frequency Response 10 kHz/1kHz -10dB.
10min 2-track recording in shell.
Equivalent to A-BEX TCC-173B cassettes.
GLKAC-D. 1-frequency. 3180 +120 Usec.
KABA R&D duplicator adjustment 18.5 kHz -20dB.
Equivalent to "test tape KABA 18.5 kHz -20dB" cassettes for duplicator.
