OTARI MX-5050BII Series Professional Reel-to-Reel 1/4 -inch Tape Recorder/ Mastering Machine
Mono-stereo
4 heads
Record 2-track
Playback 2-track/4-track switchable, can playback old domestic tapes
Reels 5"-10"
Speed 15/7.5 ips or internally switchable to 7.5/3.75 ips
Professional features are:
selective reproduction, motion sensing, an edit control that permits spilling, an adjustable cueing control for audible monitoring in the fast-forward and rewind modes, a built-in two frequency low distortion test and cue-tone oscillator, an elapsed time indicator with a digital LED display, front adjustable record bias, equalization, and record level controls allow to use any type of tape, active balanced input and output, a standard reference level output switch, switches for recording levels, equalization, microphone, and output level attenuators, playback equalization pots for each speed, a memory stop, ceramic tape guides
Fully restored and serviced
Relapped heads
New pinch roller from Terry Witt, USA
Original FULL Service Instruction Manual
Accessories kit
Measured parameters meet or exceed specifications
Adjusted to +4dBu professional input/output levels using MRL Standard Alignment Tapes
Weight 28 kg
Page 1 of 2
OTARI MX-5050B2 Right Up

OTARI MX-5050B2 Right Up

OTARI MX-5050B2 Rear

OTARI MX-5050B2 Rear

OTARI MX-5050B2 Left Top

OTARI MX-5050B2 Left Top

OTARI MX-5050B2 Right Top

OTARI MX-5050B2 Right Top

OTARI MX-5050B2 Reel Table Right

OTARI MX-5050B2 Reel Table Right

OTARI MX-5050B2 Hub

OTARI MX-5050B2 Hub

OTARI MX-5050B2 Front AMP & dbx180A

OTARI MX-5050B2 Front AMP & dbx180A

OTARI MX-5050B2 Front Left

OTARI MX-5050B2 Front Left

OTARI MX-5050B2 Strobo Roller

OTARI MX-5050B2 Strobo Roller

OTARI MX-5050B2 Head Housing

OTARI MX-5050B2 Head Housing

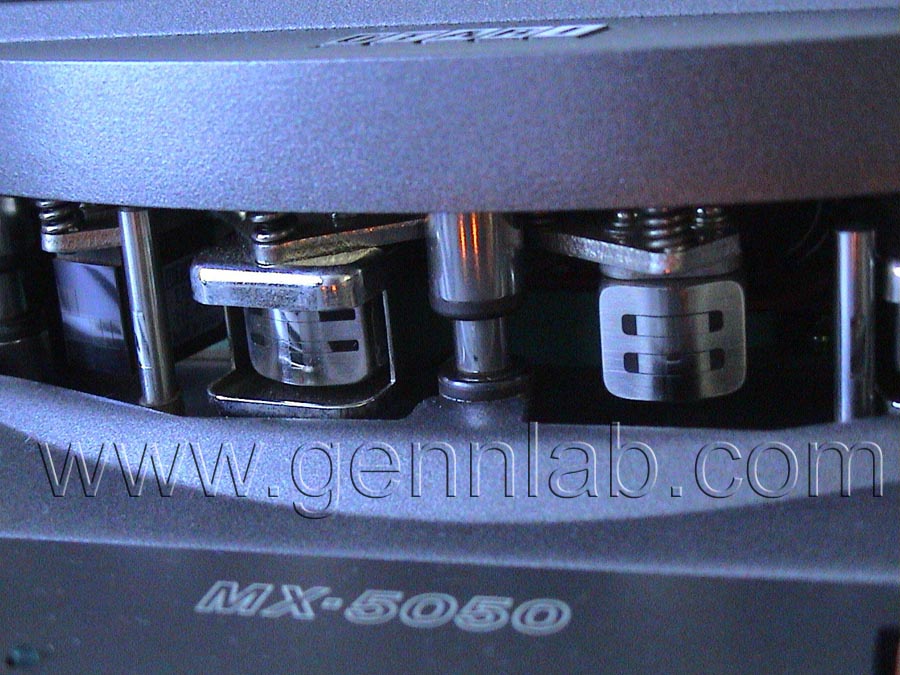

OTARI MX-5050B2 Heads Erase, 4-track Reproduction, Record

OTARI MX-5050B2 Heads Erase, 4-track Reproduction, Record

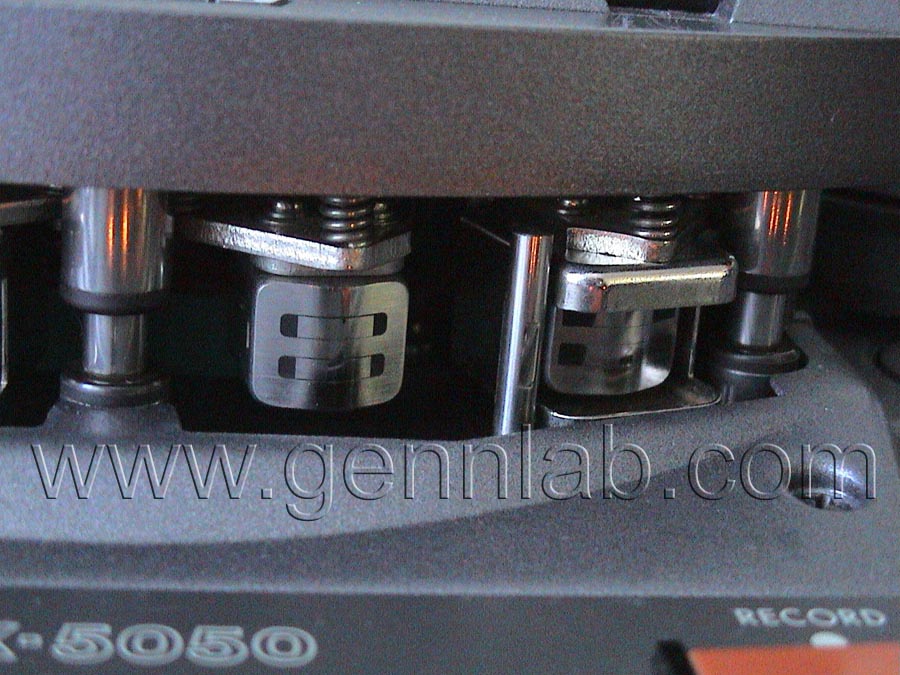

OTARI MX-5050B2 Heads Record, 2-track Reproduction

OTARI MX-5050B2 Heads Record, 2-track Reproduction

OTARI MX-5050B2 2-track / 4-track Switch

OTARI MX-5050B2 2-track / 4-track Switch

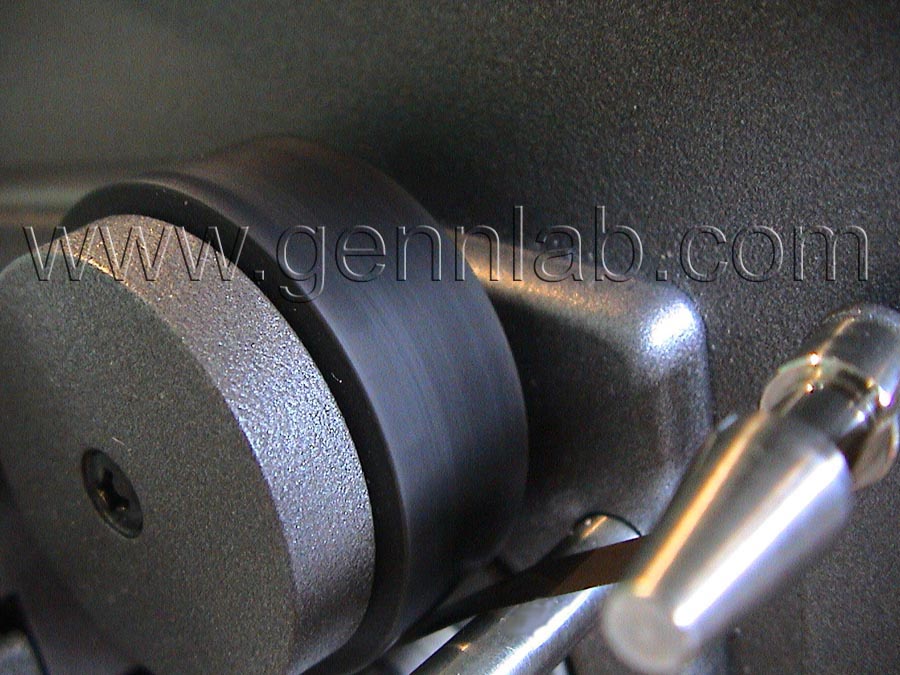

OTARI MX-5050B2 Pinch Roller

OTARI MX-5050B2 Pinch Roller

OTARI MX5050B2 Pitch Control

OTARI MX5050B2 Pitch Control

OTARI MX-5050B2 Label

OTARI MX-5050B2 Label

OTARI MX-5050B2 Accesories

OTARI MX-5050B2 Accesories

OTARI MX-5050B2 Accesories 1

OTARI MX-5050B2 Accesories 1

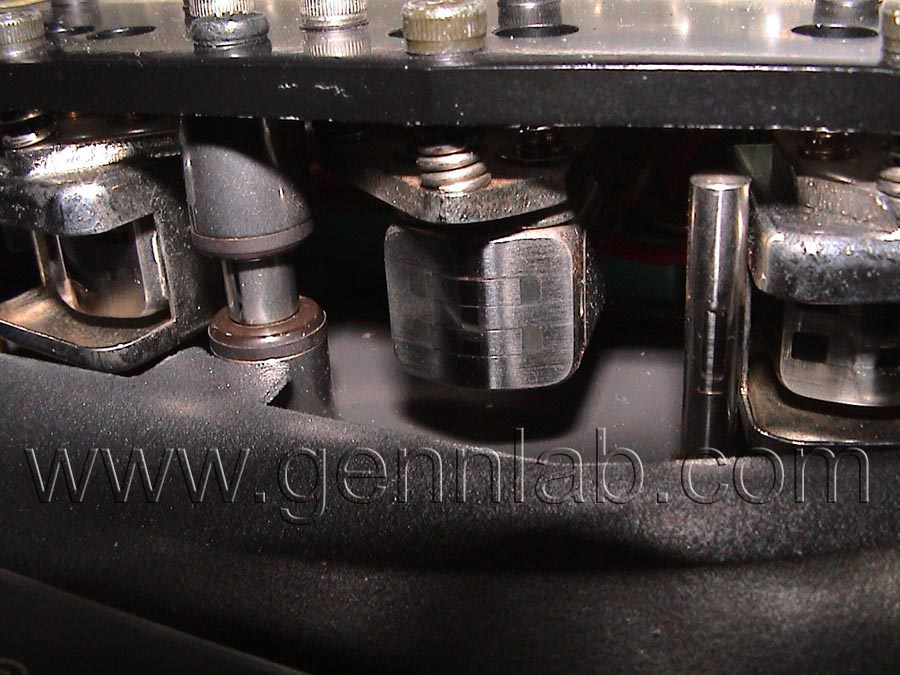

OTARI MX-5050B2 Heads

OTARI MX-5050B2 Heads

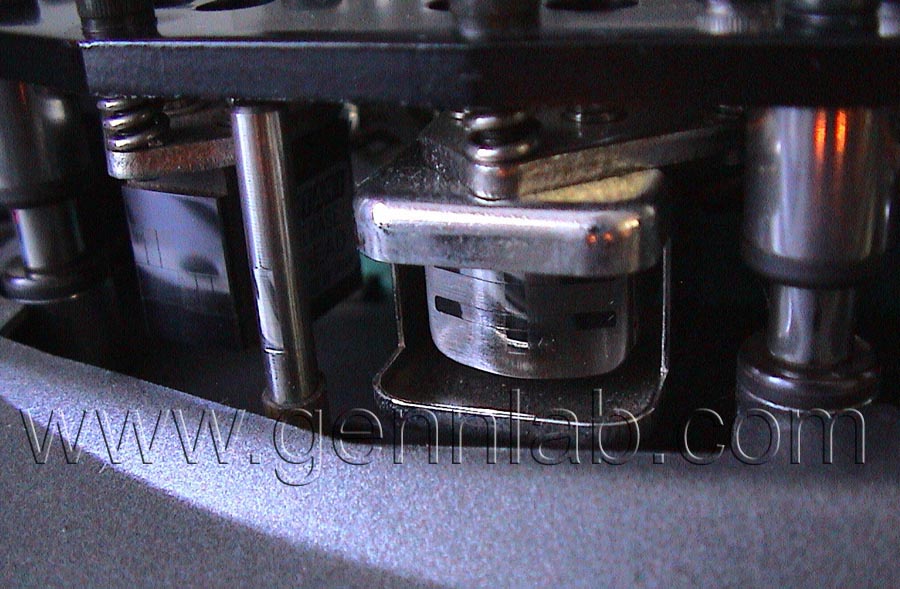

OTARI MX-5050B2 Heads Erase, 4-track Reproduction

OTARI MX-5050B2 Heads Erase, 4-track Reproduction
