Sendust Record/Playback and Erase Heads

3 motors

Nakamichi Classical Asymmetrical Resonance-free Double Capstan Large Silent Mechanism

A unique “Pad Lifter” disengages the cassette pad to reduce scrape flutter and modulation noise and thereby result in recordings of exceptional clarity Subsidiary effect of incorporating the Pad Lifter is that life of the heads is remarkably prolonged up to 10,000 hours

Tape I (Ferro oxide), II (Chrome) and IV (Metal)

Dolby “B “based on NEC uA7300PC ICs

The best 2 Head Cassette Tape Deck ever built with remarkable total purity- the quality known as “Nakamichi Sound”

Fully serviced and adjusted to the factory specifications using professional test equipment, jigs and test tapes

Head alignment checked using Magnetic Field Developer and Micrometer Microscope
See the pictures of the developed recorded tape before and after alignment

New Capstan Belt

New Cam Belt

New Counter Belt

New Idler Tyre

All new electrolytic capacitors

“Orange drops” PP capacitors in signal path replaced

Excellent working and good cosmetic condition

450(W) x 135(H) x 296(D) mm
Nakamichi 480 2 Head Cassette Deck
Specifications
Nakamichi 480 2 Head Cassette Deck repair gallery
NAKAMICHI 480 front

NAKAMICHI 480 front

NAKAMICHI 480 front Door

NAKAMICHI 480 front Door

 NAKAMICHI 480 front right

NAKAMICHI 480 front right

NAKAMICHI 480 front left 45 degr

NAKAMICHI 480 front left 45 degr

NAKAMICHI 480 front top 45degr

NAKAMICHI 480 front top 45degr

 NAKAMICHI 480 front right 45 degr

NAKAMICHI 480 front right 45 degr

NAKAMICHI 480 rear

NAKAMICHI 480 rear

NAKAMICHI 480 left

NAKAMICHI 480 left

NAKAMICHI 480 right

NAKAMICHI 480 right

NAKAMICHI 480 Label

NAKAMICHI 480 Label

NAKAMICHI 480 Serial Number

NAKAMICHI 480 Serial Number

NAKAMICHI 480 Heads

NAKAMICHI 480 Heads

NAKAMICHI 480 missaligned

NAKAMICHI 480 missaligned

NAKAMICHI 480 aligned

NAKAMICHI 480 aligned

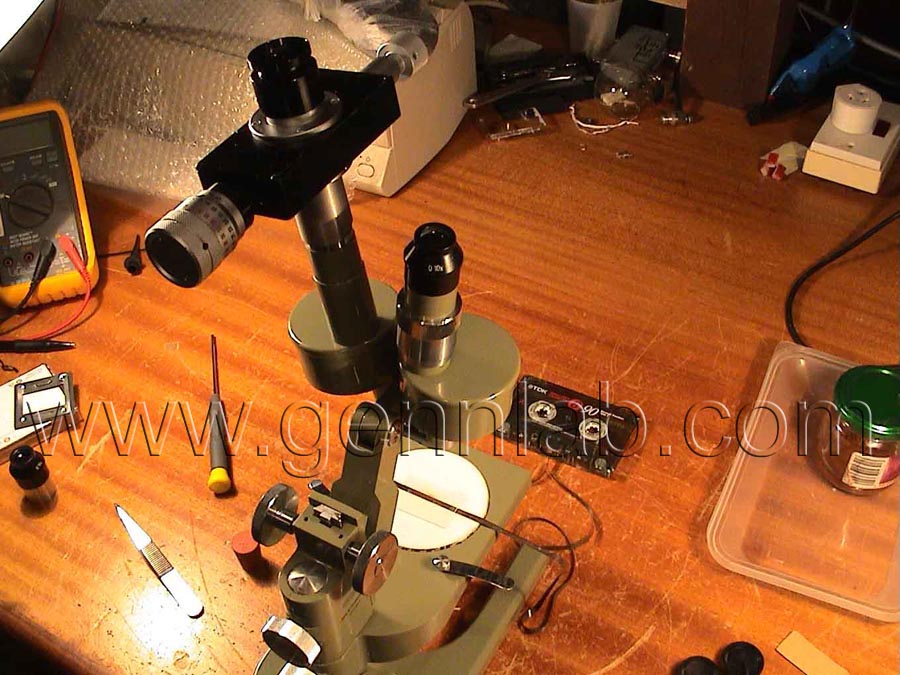

NAKAMICHI 480 Magnetic Field Developer

NAKAMICHI 480 Magnetic Field Developer

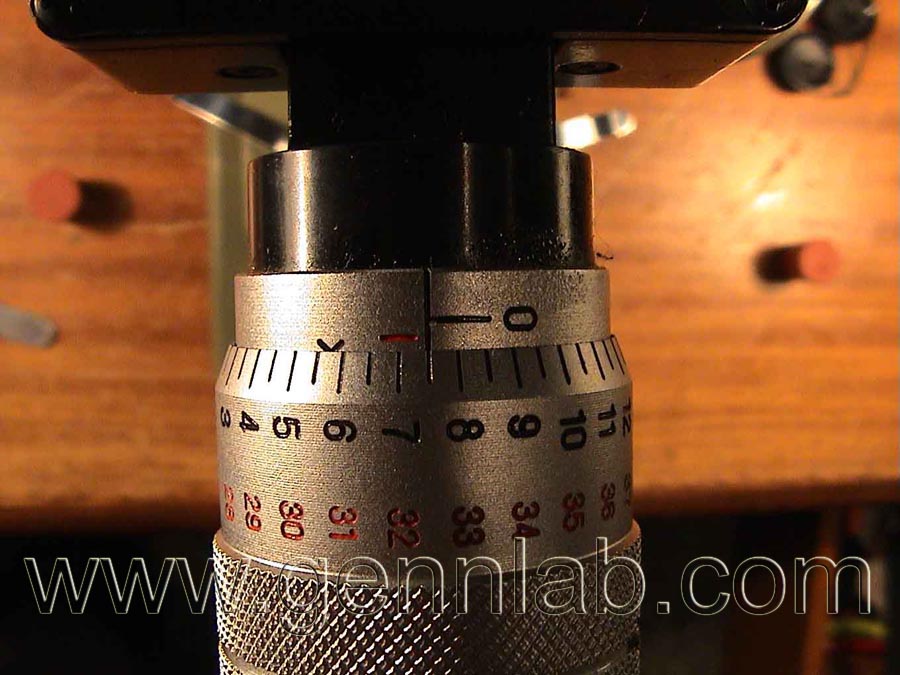

NAKAMICHI 480 Magnetic Fiel Developer 1

NAKAMICHI 480 Magnetic Fiel Developer 1

NAKAMICHI 480 Idler Tire

NAKAMICHI 480 Idler Tire

NAKAMICHI 480 Door

NAKAMICHI 480 Door
